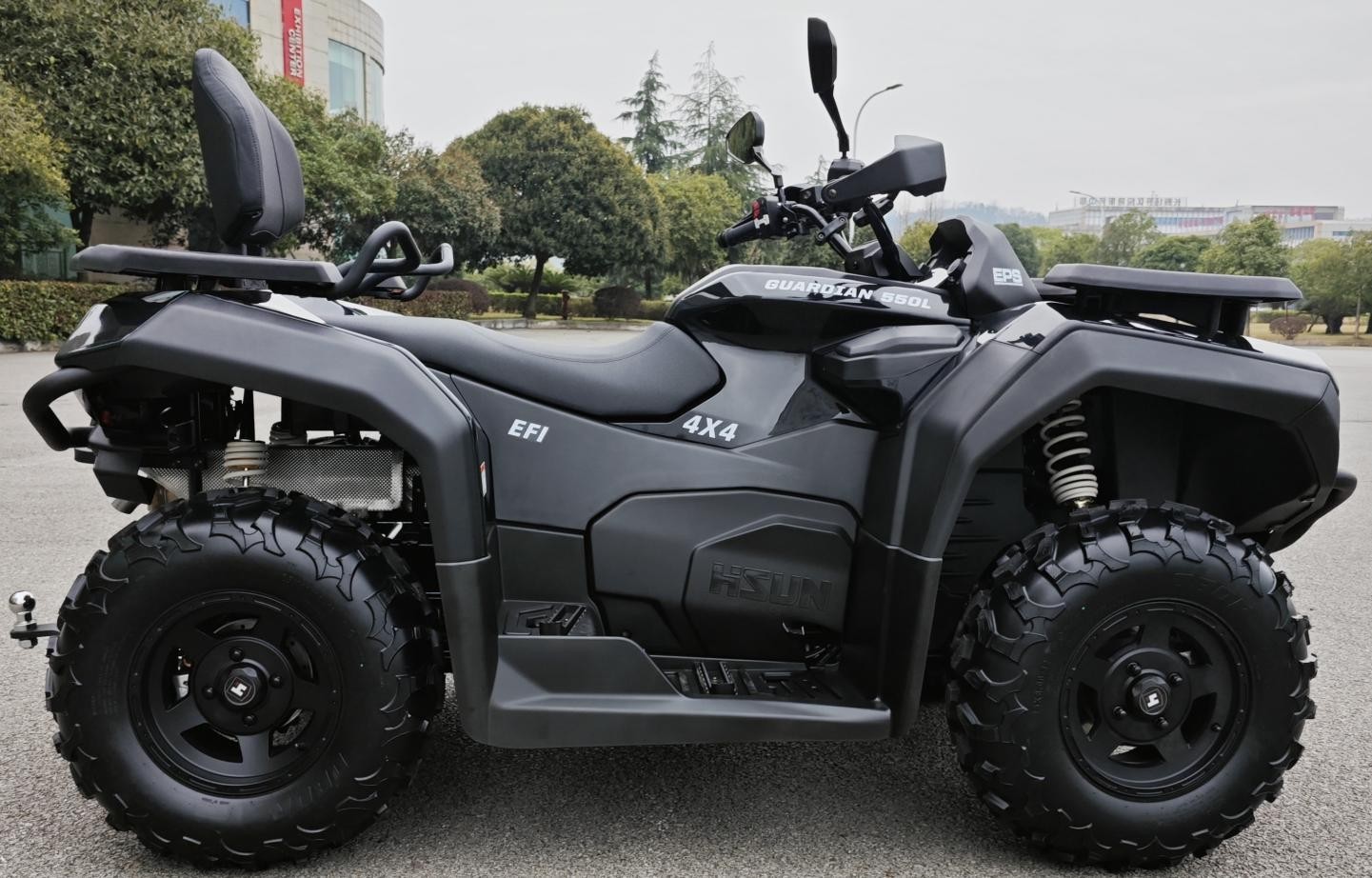

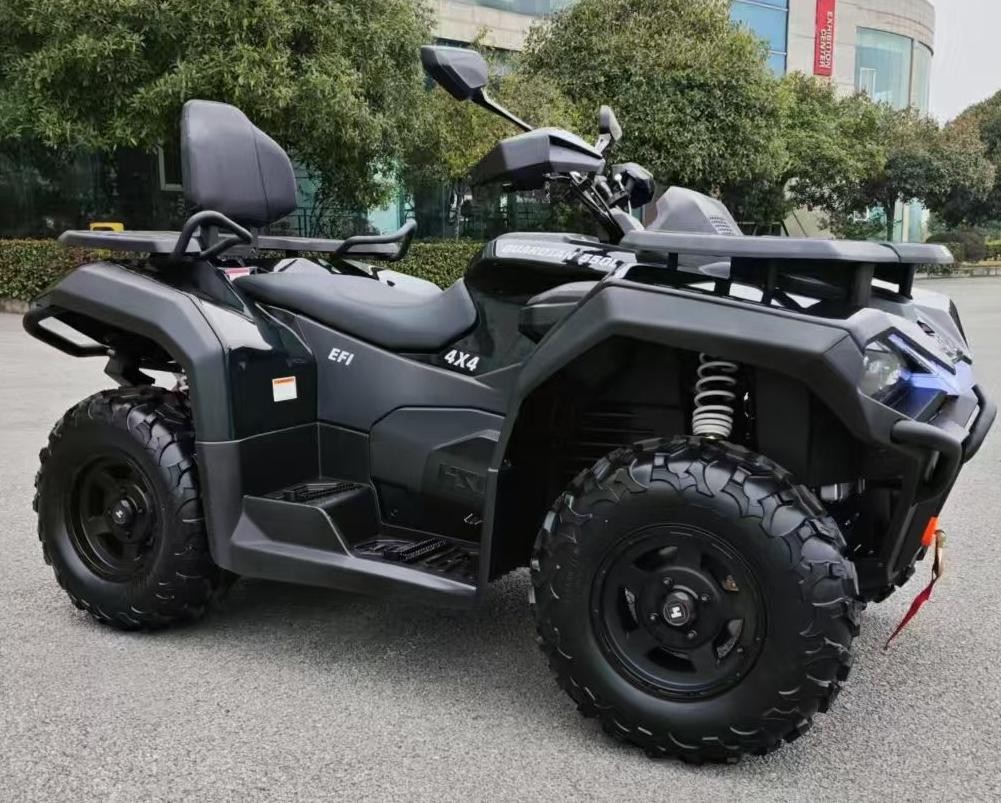

KM550-01
- Model: KM550-01
- Engine: 550cc gasoline 92#
- Tank capacity: 18L
- Shock absorption: front and rear adjustable airbag shock absorption
- Brake: hydraulic disc brake with front and rear ventilation
- Suspension type: front and rear double A-arm independent suspension
- Front wheel model: 24*8-12
- Rear wheel model: 24*10-12
- Front and rear wheel tracks: 972/920mm
- Wheelbase: 1330mm
- Minimum ground clearance: 275mm
- Wading depth: 510-560mm.
- Vehicle size: 2200*1200*1450mm
- Vehicle mass: 445+75KG
Overview
Powered by a 550cc engine, this ATV delivers strong, reliable performance with smooth handling across challenging terrain. Its adjustable airbag suspension, independent double A-arm system, and hydraulic ventilated disc brakes provide exceptional comfort, stability, and precise control in the toughest conditions.
